Team invents method to shrink objects to the nanoscale
It’s not quite the Ant-Man suit, but the system produces 3D structures one thousandth the size of the originals.
Written by Anne Trafton
MIT News

It’s not quite the Ant-Man suit, but researchers have invented a way to shrink 3D objects of nearly any shape down to the nanoscale. They can also pattern the objects with a variety of useful materials, including metals, quantum dots, and DNA.

“It’s a way of putting nearly any kind of material into a 3D pattern with nanoscale precision,” says Edward Boyden, senior author of the research and associate professor of biological engineering and of brain and cognitive sciences at MIT.

Using the new technique, the researchers can create any shape and structure they want by patterning a polymer scaffold with a laser. After attaching other useful materials to the scaffold, they shrink it, generating structures one thousandth the volume of the original.

RELATED: Researchers Develop Cheap, 10-Minute Test That Can Detect Cancer Anywhere in the Body

These tiny structures could have applications in many fields, from optics to medicine to robotics, the researchers say. The technique uses equipment that many biology and materials science labs already have, making it widely accessible for researchers who want to try it.

“There are all kinds of things you can do with this,” Boyden says. “Democratizing nanofabrication could open up frontiers we can’t yet imagine.”

Existing techniques for creating nanostructures are limited in what they can accomplish. Etching patterns onto a surface with light can produce 2D nanostructures but doesn’t work for 3D structures. It is possible to make 3D nanostructures by gradually adding layers on top of each other, but this process is slow and challenging. And, while methods exist that can directly 3D print nanoscale objects, they are restricted to specialized materials like polymers and plastics, which lack the functional properties necessary for many applications. Furthermore, they can only generate self-supporting structures. (The technique can yield a solid pyramid, for example, but not a linked chain or a hollow sphere.)

To overcome these limitations, Boyden and his students decided to adapt a technique that his lab developed a few years ago for high-resolution imaging of brain tissue. This technique, known as expansion microscopy, involves embedding tissue into a hydrogel and then expanding it, allowing for high resolution imaging with a regular microscope. Hundreds of research groups in biology and medicine are now using expansion microscopy, since it enables 3D visualization of cells and tissues with ordinary hardware.

LOOK: These Cheap Little Refrigerators Can Provide Cooling Without Needing Any Kind of Power

By reversing this process, the researchers found that they could create large-scale objects embedded in expanded hydrogels and then shrink them to the nanoscale, an approach that they call “implosion fabrication.”

As they did for expansion microscopy, the researchers used a very absorbent material made of polyacrylate, commonly found in diapers, as the scaffold for their nanofabrication process. The scaffold is bathed in a solution that contains molecules of fluorescein, which attach to the scaffold when they are activated by laser light.

Using two-photon microscopy, which allows for precise targeting of points deep within a structure, the researchers attach fluorescein molecules to specific locations within the gel. The fluorescein molecules act as anchors that can bind to other types of molecules that the researchers add.

“You attach the anchors where you want with light, and later you can attach whatever you want to the anchors,” Boyden says. “It could be a quantum dot, it could be a piece of DNA, it could be a gold nanoparticle.”

CHECK OUT: Sir Richard Branson Will Give $3 Million to Whoever Can Save the Planet By Reinventing the Air Conditioner

“It’s a bit like film photography — a latent image is formed by exposing a sensitive material in a gel to light. Then, you can develop that latent image into a real image by attaching another material, silver, afterwards. In this way implosion fabrication can create all sorts of structures, including gradients, unconnected structures, and multimaterial patterns,” Oran says.

Once the desired molecules are attached in the right locations, the researchers shrink the entire structure by adding an acid. The acid blocks the negative charges in the gel so that they no longer repel each other, causing the gel to contract. Using this technique, the researchers can shrink the objects 10-fold in each dimension (for an overall 1,000-fold reduction in volume). This ability to shrink not only allows for increased resolution, but also makes it possible to assemble materials in a low-density scaffold. This enables easy access for modification, and later the material becomes a dense solid when it is shrunk.

“People have been trying to invent better equipment to make smaller nanomaterials for years, but we realized that if you just use existing systems and embed your materials in this gel, you can shrink them down to the nanoscale, without distorting the patterns,” says graduate student Samuel Rodriques, one of the lead authors of the paper.

Currently, the researchers can create objects that are around 1 cubic millimeter, patterned with a resolution of 50 nanometers. There is a tradeoff between size and resolution: If the researchers want to make larger objects, about 1 cubic centimeter, they can achieve a resolution of about 500 nanometers. However, that resolution could be improved with further refinement of the process, the researchers say.

MORE: Cheap, Electric Bandages Speed Up Healing Process From Two Weeks to Three Days

The MIT team is now exploring potential applications for this technology, and they anticipate that some of the earliest applications might be in optics — for example, making specialized lenses that could be used to study the fundamental properties of light. This technique might also allow for the fabrication of smaller, better lenses for applications such as cell phone cameras, microscopes, or endoscopes, the researchers say. Farther in the future, the researchers say that this approach could be used to build nanoscale electronics or robots.

Many research labs are already stocked with the equipment required for this kind of fabrication. “With a laser you can already find in many biology labs, you can scan a pattern, then deposit metals, semiconductors, or DNA, and then shrink it down,” Boyden says.

Reprinted with permission from MIT News

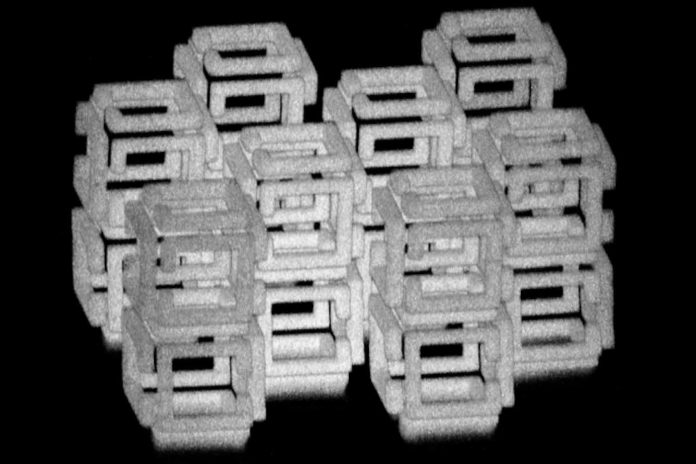

Be Sure And Share This Super Story With Your Friends On Social Media – Photo by Daniel Oran
